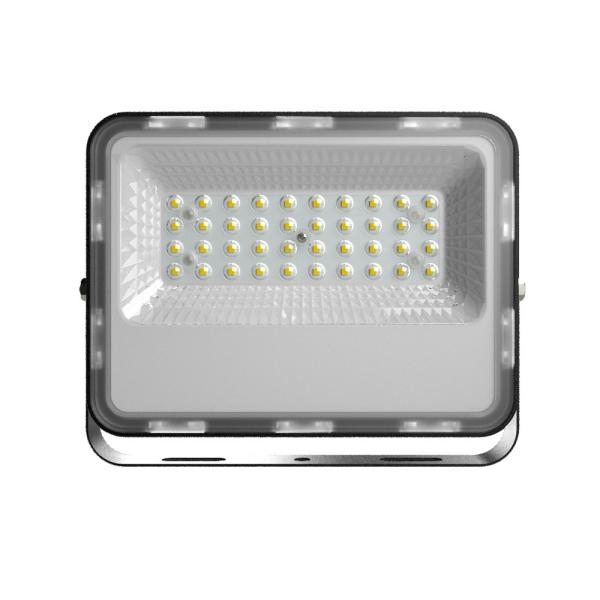

Lens LED Reflector Floodlights 30 50 100 150 200 Watts Adjustable Angle
Quick details of LED Reflector Floodlights:
1. Lumen index: 3900lm for 30 watts.
2. 40PCS super bright LED chips Osram SMD3030 light source.
3. Input work voltage: AC85-265V, 50/60Hz.
4. Optional color temperature: normal 3000K, 4500K, 6500K, 7000K+ and customised color.
5. Available wattages: 30w, 50w, 100w, 150w and 200w.
6. Surge protection: 4KV.
7. Shock-proof class: IK07.
8. Water-proof class: IP66.
7. Material: die casting aluminum and optical PC lens with 60 Deg. and 120 Deg. optional.
8. Optional narrow beam angle 60 degree and wide beam angle 120 degree.
9. Various smart serier: 0-10V dimming, Dali dimmming, pir motion sensor, radar sensor, photocel sensor, DMX512 and remote control.
Descriptions of LED Reflector Floodlights:
► 40 LEDs 3900 Lumens
The built-in upgraded 40 pcs super bright LED smd chips can produce 3900lm high output brightness, which is much more brighter than other light sources.
► Brightness Upgraded
Powered by high-quality 3030 LED chips, increased the number of light beads, better brightness and large illumination.
► Thickened Aluminum
Superior & thickened ADC12# diecasting aluminum with corrosion-proof, shock-proof, dust-proof and weather-proof, faster heat sinking to keep long lifespan.
► Constant Current Driver
High quality constant current driver with high work efficiency, PF>0.9, famous brand drivers customised.
► Waterproof Upgrated
Rain-proof & water-proof protection IP66 upgraded, suitable for wet applications.
► High Quality Glass Bead Cover
High-quality optical bead PC cover with 60 degree, no yellow, and high light transmission up to >95%.
Product Parameters of LED Reflector Floodlights:
| Product Name | LED reflector floodlights 30 50 100w |
| SKU | SU-WS30 | SU-WS50 | SU-WS100 |
| Input Voltage | AC85-265V, 50/60Hz |
| Rated Power | 30W | 50W | 100W |
| Light Source | SMD3030 Osram |
| Light Efficiency | 130lm/W |
| CCT | 2700k, 3000k, 4500k, 5000k, 6500k |
| Product Size (mm) | L223*W181*H35 | L253*W211*H35 | L284*W241*H40 |
| Driver | Constant Current Isolated Driver |
| Body Material | ADC12 Aluminum |
| Cover Material | Tempered Glass |
| CRI | >80 |
| PF | >0.9 |
| Housing Color | Black, Grey |
| Surge Protection | 4KV |
| Beam Angle | 60° |
| Class Protection | IK07, IP66 |
| Working Temperature: | -30 ~ 50 Deg. |
| Life Span | 50,000H |
| Warranty | 3 Years |
| Application | Sports Stadiums, yard, garden, street, wall lighting |
Product Show of LED Reflector Floodlights:
Product figure of LED Reflector Floodlights:
1. Optical PC lens against yellowing.
2. Waterproof silicon ring.
3. Nano-plastic reflector against the high temperature and UV.long use and never yellowing.
4. SMD3030 LED.high light officiency and lighting to further.
5. Aluminum base with high thermal conductivity,and faster heat running.
6. High-quality and famous brand driver: Meanwell, sosen etc.
7. ADC12 die-casting aluminum radiator, efficiency up to 96W/M.K.
8. Strong support and strong installation.
Dimensions of LED Reflector Floodlights:
Optical Lens 60 and 120 degree available of LED Reflector Floodlights:
Installations of LED Reflector Floodlights:
Frequent Questions of LED Reflector Floodlights:
1. Can I have 1pc sample to test firstly?
Re: Yes, 1pc sample can be offered, and mixed samples are welcome.
2. Do you have customised service like box, logo?
Re: Yes, we accept OEM or ODM. You please tell us your idea, and we will give you a solution.
3. Can you do WHITE body for this model?
Re: Yes, we can. This model has White and Black body for your options.
4. How long can I get my package?
Re: 1pc could be got about 1 week.
5. Can this led reflector floodlights dimmable?
Re: Yes, this model can make dimmable such as 0-10V, Dali dimming etc. Please contact us for details!
6. Can you do colorful box?
Re: Yes, certainly. We just want your draft to do what you hoped.
7. Does this LED reflector floodlights include any driver?
Re: Yes, absolutely. This lamp includes constant-current isolated driver with warranty 3 years, and Philips driver available.
8. How can you guarantee the quality?
Re: All raw materials must be checked before stocking and the finished products must have been tested and aged. Finally packed. If unfornately any fault happend, we will replace.
